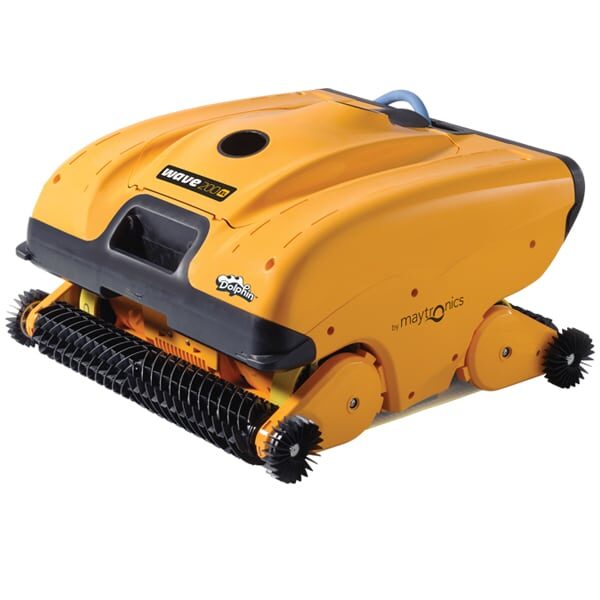

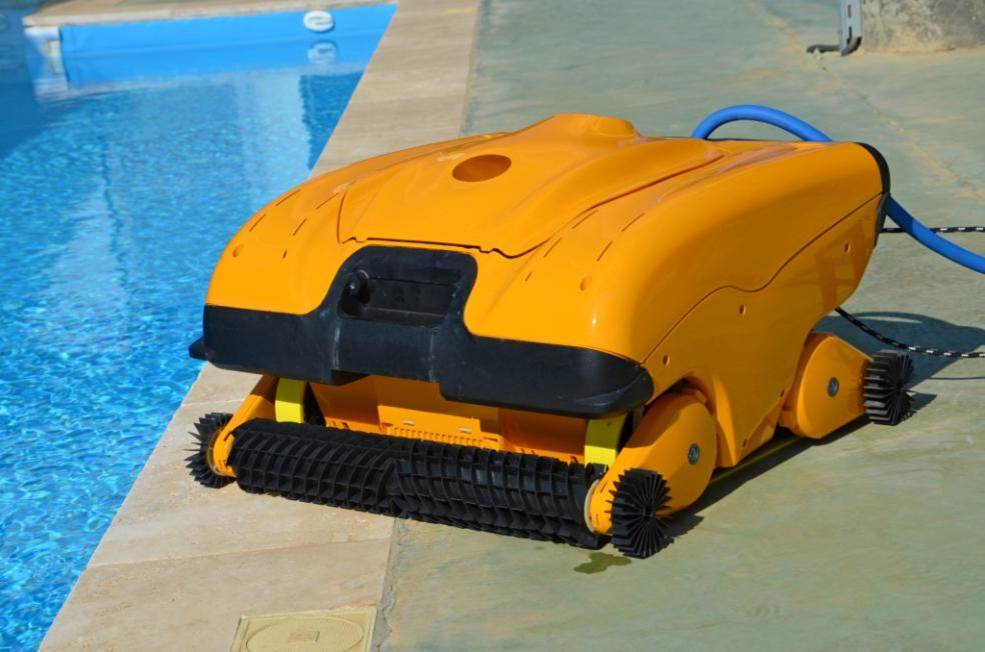

Dolphin Wave 200 XL Commercial Robotic Pool Cleaner
The Dolphin Wave 200 XL Commercial Robotic Pool Cleaner provides heavy-duty automated floor cleaning for large commercial and institutional swimming pools up to 50 metres long. It is designed for aquatic centres, universities, resorts, competition pools and other facilities requiring reliable cleaning across large pool floors.
An advanced gyroscopic navigation and electronic compass system allows the cleaner to scan the pool and calculate an efficient cleaning route. Therefore, the Wave 200 XL can provide systematic coverage across rectangular, round, kidney-shaped and freeform pools.
Heavy-Duty Pool-Floor Cleaning
The Dolphin Wave 200 XL cleans the pool floor only. It does not clean pool walls or waterlines.
Dual-direction active brushes loosen dirt and debris from the pool surface. Four side brushes also assist with cleaning around edges, corners and difficult areas.
A powerful suction rate of 34 m³ per hour collects loosened debris and directs it into the filtration system.
Adjustable Cleaning Cycles
The interactive control system provides cleaning cycles ranging from one to eight hours.
Available cycle times are:
One hour
Two hours
Three hours
Four hours
Five hours
Six hours
Seven hours
Eight hours
This range allows pool operators to select a shorter maintenance cycle or a longer, more intensive clean according to the pool size and condition.
Advanced Navigation Options
The Wave 200 XL offers multiple scanning modes for different commercial pool layouts.
Line-by-line cleaning provides systematic coverage when cleaning time is limited. Criss-cross scanning suits irregularly shaped pools or pools containing obstacles.
The cleaner can store customised programs for up to four pools. Each profile can include its own pool dimensions, navigation pattern, cycle time and cleaning settings. As a result, one cleaner can service several pools within the same aquatic facility.
Spiral Two-Layer Filtration
The spiral two-layer filtration system captures coarse and fine debris during the cleaning cycle. Spiral-flow technology directs collected material into the filter and helps maintain effective water flow through the cleaner.

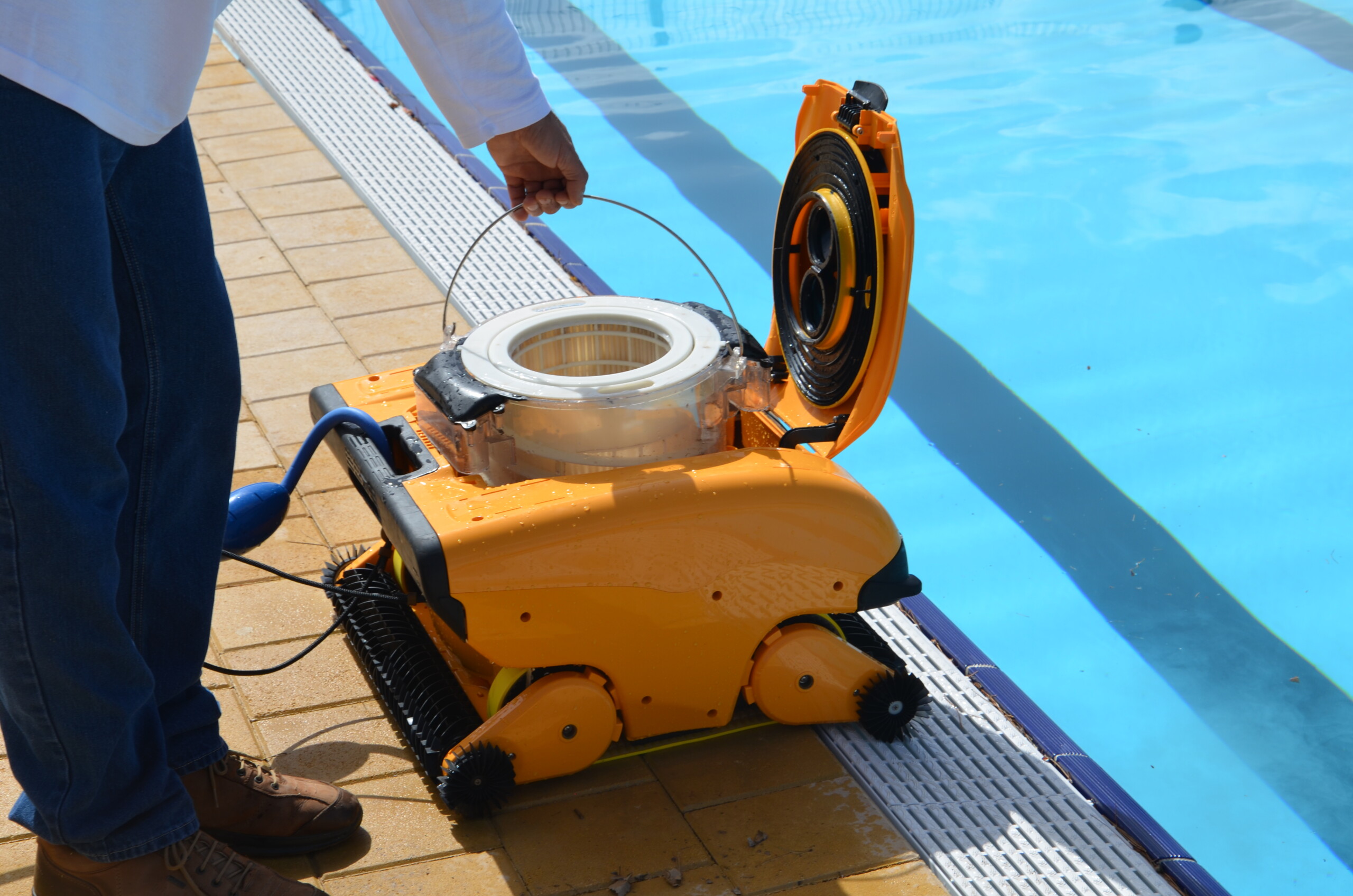

Top-access filtration allows maintenance staff to remove and rinse the filter without turning over the machine.
Interactive MMI Control Panel
The MMI, or Man-Machine Interface, provides a digital control panel for operating and programming the Wave 200 XL.
Available functions include:
Cleaning-cycle selection
Pool-profile programming
Scanning-mode selection
Delayed start
Filter-full indicator
Operating status
Drive-to-pool mode
Drive-home mode
The included remote control also allows staff to manually direct the cleaner towards areas requiring additional attention.

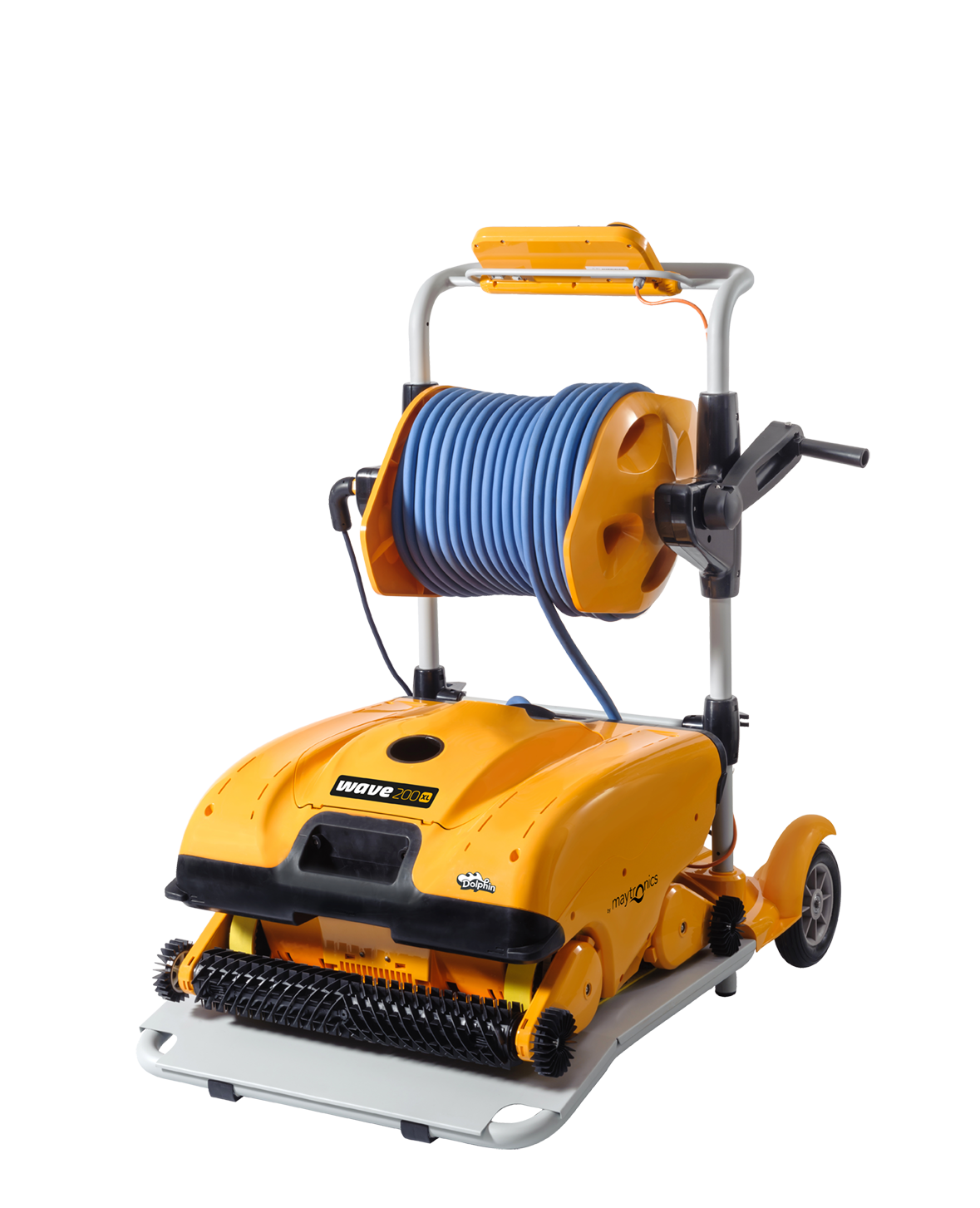

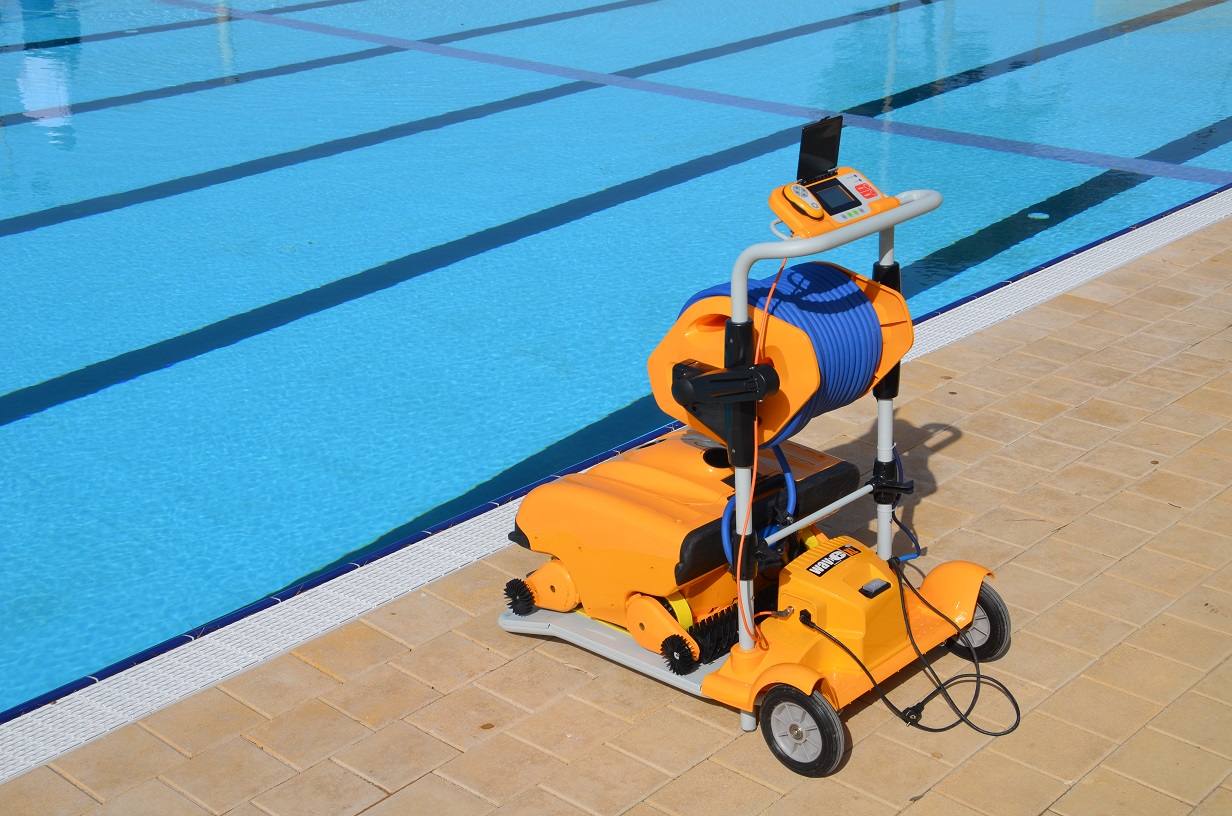

Commercial Caddy Included
The multi-purpose caddy includes automatic cable release for improved cable management. It also allows staff to transport the cleaner and provides an organised storage location for the robot, cable, power supply and remote control.
Product Specifications
Application: Large commercial and institutional pools
Recommended pool length: Up to 50 metres
Recommended water depth: 0.4 to 7 metres
Pool types: In-ground commercial pools
Compatible pool shapes: Rectangular, round, kidney and freeform
Cleaning coverage: Pool floor only
Wall cleaning: No
Waterline cleaning: No
Cleaning cycles: One to eight hours
Navigation: Gyroscopic navigation with electronic compass
Scanning modes: Multiple programmable patterns
Pool profiles: Customised programs for up to four pools
Brushes: Dual-direction active brushes and four side brushes
Filtration: Spiral two-layer filtration
Filter access: Top access
Filter-full indicator: Yes
Suction flow rate: 34 m³ per hour
Cable length: 42 metres
Cable management: Software swivel
Control system: Interactive MMI digital interface
Delayed start: Yes
Remote control: Included
Robot weight: Approximately 24 kg
Caddy: Included with automatic cable release
Australian product number: 99997200-AU
Manufacturer’s warranty: Two years or 3,000 working hours
The Dolphin Wave 200 XL combines commercial-grade cleaning power, programmable navigation and flexible operating controls for large swimming facilities.
